TANK-PRO AAS Microwave Digestion system

  • 1 - 4 Sets
    $29,800.00
  • >=5 Sets
    $24,500.00
Specification:
600*685*660mm
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$25,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Classification:
Other
Place of Origin:
Shanghai, China
Brand Name:
Drawell
Model Number:
TANK-PRO
Power supply:
220~240VAC 50/60Hz 16A
Microwave source:
2450MHz, dual magnetron design
Installed power:
2850W
Chamber capacity:
48L
Digestion Library:
TANK BASIC:20 preinstalled methods, programing 50 methods
Temperature Sensor:
Optical Fiber
Vessel volume:
100mL
Vessel quantity:
12 Vessels
Display:
7" LCD color touch screen
Working environment:
cooling from 200°C to 80°C.0~40°C/ 15~80% RH
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package with pure English
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated

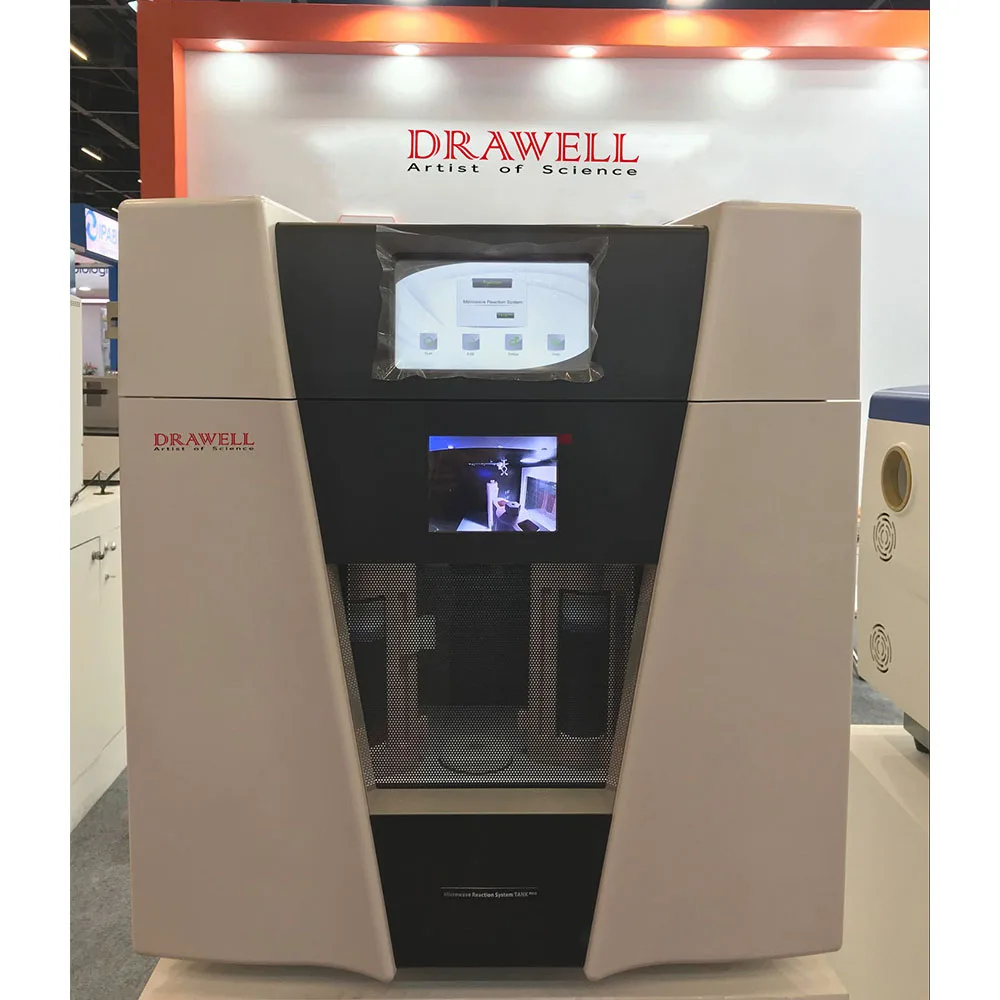

Microwave Digestion System

Model: TANK-PRO








ower supply

220~240VAC 50/60Hz 16A

Microwave source

2450MHz, dual magnetron design

Installed power

2850W

Maximum output power

1600W, microwave non-pulse continuous automatic frequency conversion control

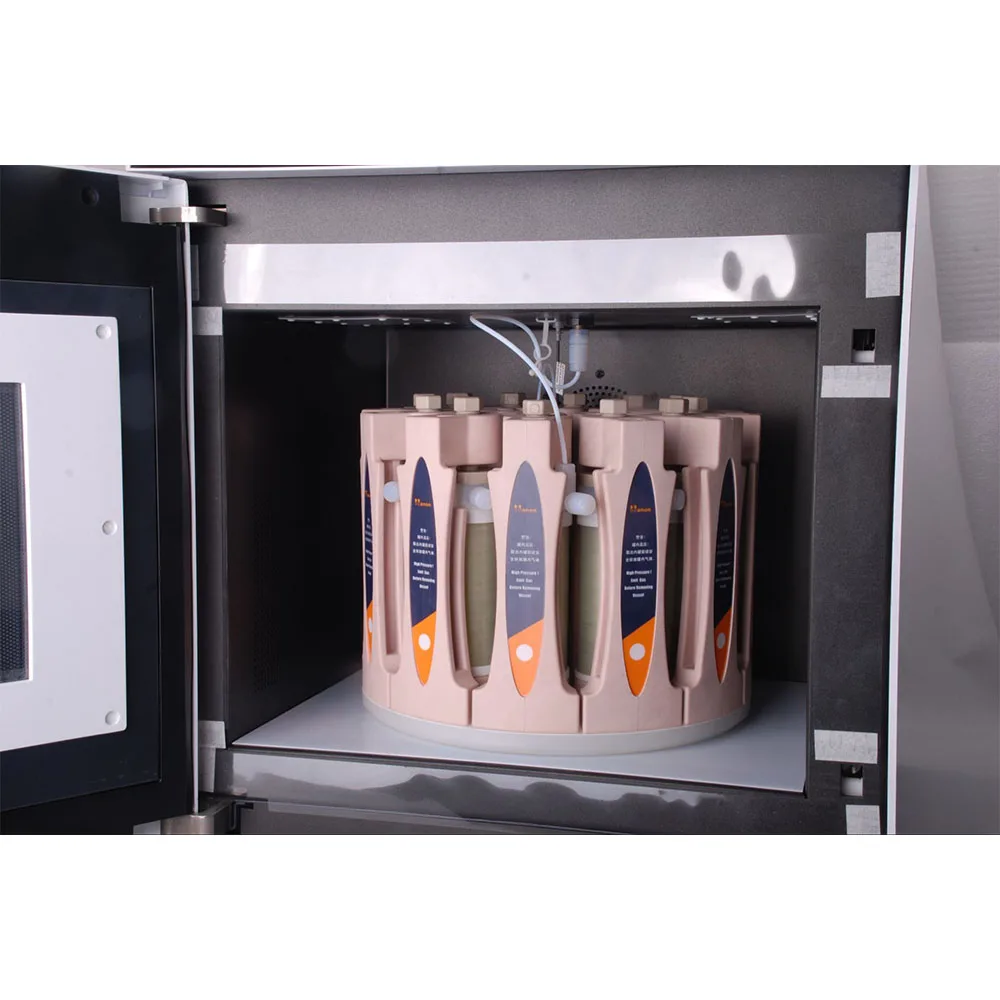

Microwave chamber

316L stainless steel chamber, applied with 8 layers anticorrosive  inside and outside

Chamber capacity

48L

Digestion Library

TANK BASIC:20 preinstalled methods, programing 50 methods

Temperature Sensor

Optical Fiber

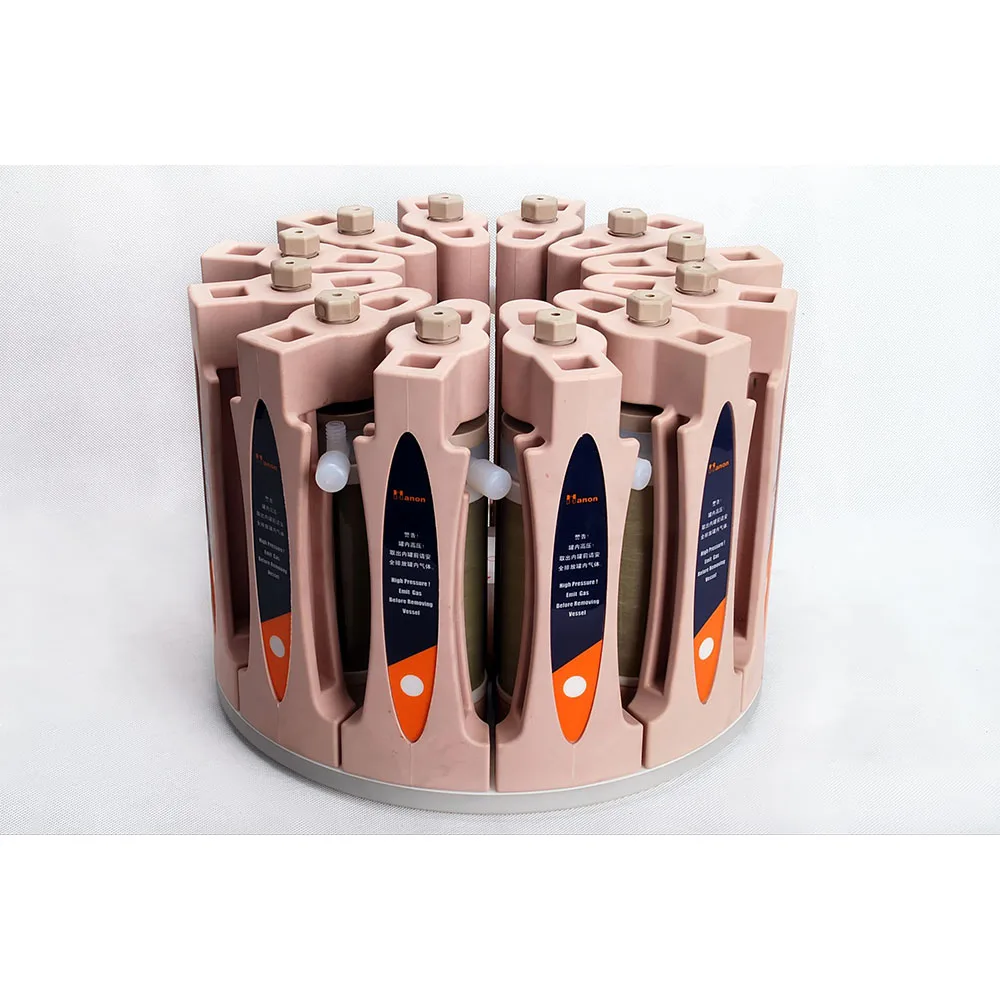

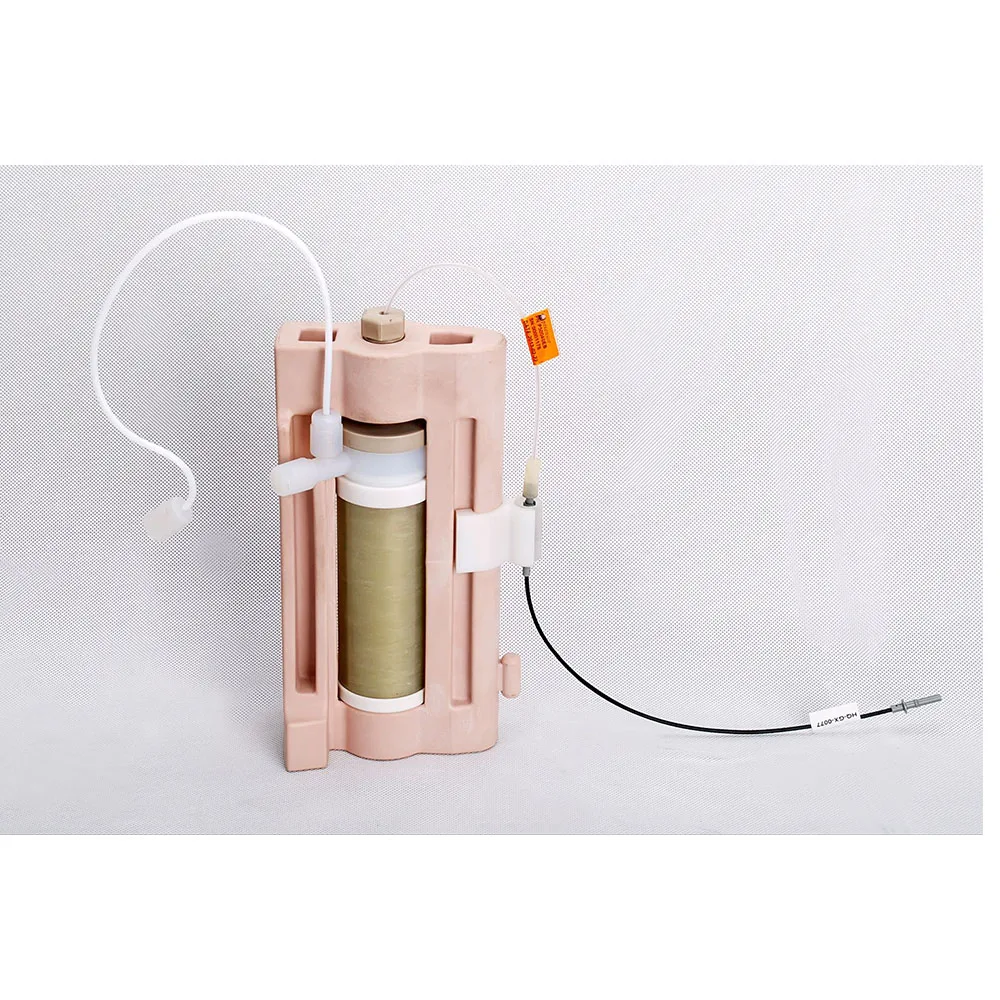

Vessel volume

100mL

Vessel quantity

12 Vessels

Display

7" LCD color touch screen

Door design

Safety door designed based on the 3D directional explosion mechanism, with the integrated

Pressure monitoring system

groove structure design of microwave leak prevention,High precision semiconductor pressure sensor, with pressure control range: 0-10MPa(1500psi),accuracy: ±0.01MPa

Temperature monitoring system

Multi-core integrated optical fiber temperature control system, protective coating, temperature measuring range: -40-305°C, accuracy: ±0.1°C

Passive protection system

COT real-time temperature and pressure monitoring system, automaticly alarm when any reaction,tank has abnormal T/P, and cut off the microwave immediately to protect the user and instrument.

Software

ARM chip equipped with UCOS-II operating system for multi-task operation, TANK equips with 7 inch LCD color touch screen, and connected to computer for remote control.

Chamber exhaust system

High-power corrosion-resisting turbine fan, with turbulent and efficient air cooling, fast 15 min

Working environment

cooling from 200°C to 80°C.0~40°C/ 15~80% RH

Physical size / weight

600*685*660mm (Width x Depth x Height), 75KG



_03.jpg 1.jpg2.jpg3.jpg4.jpg5.jpgMicrowave Digester.jpg
